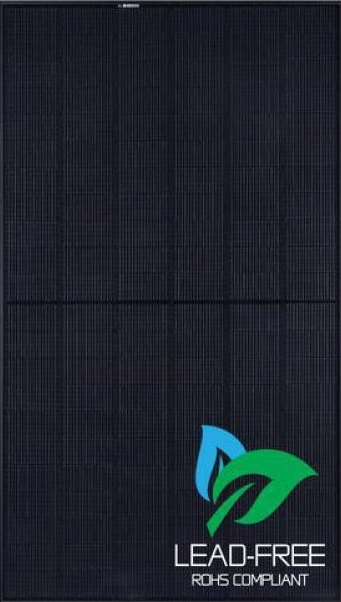

REC 420W 132 Half-Cell HJT 1000V BLK/BLK Solar Panel, REC420AA PURE 2

Technical Specifications

REC 420W 132 Half-Cell HJT 1000V BLK/BLK Solar Panel, REC420AA PURE 2

General Information

Manufacturer

REC Solar

Series

Alpha Pure 2

Part #

REC420AA PURE 2

Catalog #

REC420AA PURE 2

Dimensions

1864 L x 1039 W x 30 H mm

Weight

47.6 Lbs.

Approvals

IEC 61215:2016IEC 61730:2016UL 61730IEC 62804IEC 61701IEC 62716UL 61730IEC 62782IEC 61215-2:2016IEC 62321ISO 14001ISO 9001IEC 45001IEC 62941

Technical Specifications

Watts PTC

320

Watts STC

420 W

Cells

132

Technology

HJT

Open Circuit Voltage (Voc)

49.1

Short Circuit Current (Isc)

10.74

Max Power Voltage (Vmpp)

42.2

Max Power Current (Impp)

9.96

Max Current

25 A

Efficiency

21.7

Max System Voltage

1000 V

Frame Material

Anodized Alluminum

Frame Thickness (mm)

Frame Color

Black

Backsheet Material

Highly resistant polymer

Connector

Staubli MC4 PV-KBT4/KST4 (12 AWG)

Output Cables

12 AWG solar cable, 49.2 + 49.2 in

Series Fuse Rating (Amps)

Temp Coefficient (Pmpp)

-0.24

Temp Coefficient (Voc)

-0.24

Fire Classification (Type)

Type 2
