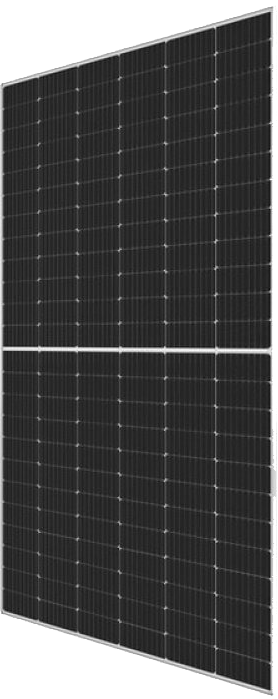

LONGi Solar 545W 144 Half-Cell 1500V Silver Bifacial Solar Panel, LR5-72HBD-545M

Take advantage of our extensive on-site inventory.
For wholesale pricing and availability:

Request a Quote

Technical Specifications

LONGi Solar 545W 144 Half-Cell 1500V Silver Bifacial Solar Panel, LR5-72HBD-545M

General Information

Manufacturer

LONGi Solar

Series

Hi-MO 5

Part #

LR5-72HBD-545M

Catalog #

LR5-72HBD-545M

Dimensions

2256 L x 1133 W x 35 H mm

Weight

71.21 Lbs

Approvals

IEC 61215IEC 61730UL 61730ISO 9001: 2015ISO 14001: 2015ISO 45001: 2018IEC 62941

Technical Specifications

Watts PTC

648

Watts STC

545 W

Cells

144

Technology

M10 Gallium-doped Wafer

Open Circuit Voltage (Voc)

49.65

Short Circuit Current (Isc)

16.62

Max Power Voltage (Vmpp)

41.75

Max Power Current (Impp)

15.56

Max Current

30 A

Efficiency

21.3

Max System Voltage

1500 V

Frame Material

Anodized Alluminum Alloy

Frame Thickness (mm)

Frame Color

Silver

Backsheet Material

2.0+2.0mm Heat Strengthened Glass

Connector

4mm2, +400, -200mm/+-1400mm

Output Cables

1350 mm, φ 5.7 mm

Series Fuse Rating (Amps)

Temp Coefficient (Pmpp)

-0.34

Temp Coefficient (Voc)

-0.265

Fire Classification (Type)

Type 29

Datasheet

Downloads

Datasheet

LR5-72HBD-545M
