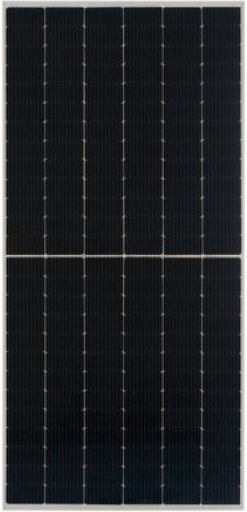

Jinko Solar 455W 156 Half-Cell 1500V Silver Bifacial Solar Panel, JKM455M-7RL3-TV

Technical Specifications

Jinko Solar 455W 156 Half-Cell 1500V Silver Bifacial Solar Panel, JKM455M-7RL3-TV

General Information

Manufacturer

Jinko Solar

Series

Eagle 78TR G4b

Part #

JKM455M-7RL3-TV

Catalog #

JKM455M-7RL3-TV

Dimensions

2205 L x 1032 W x 40 H mm

Weight

58.42 Lbs.

Approvals

ISO9001:2015 Quality StandardsISO14001:2015 Environmental StandardsIEC61215IEC61730 certified productsISO45001:2018 Occupational Health & Safety StandardsUL61730 certified products

Technical Specifications

Watts PTC

419.4

Watts STC

455 W

Cells

156

Technology

Monocrystalline

Open Circuit Voltage (Voc)

51.8

Short Circuit Current (Isc)

11.26

Max Power Voltage (Vmpp)

43.25

Max Power Current (Impp)

10.52

Max Current

25 A

Efficiency

Max System Voltage

1500 V

Frame Material

Anodized Alluminum Alloy

Frame Thickness (mm)

Frame Color

Silver

Backsheet Material

DuPont Tedlar

Connector

JK03M

Output Cables

12 AWG, 1400mm

Series Fuse Rating (Amps)

Temp Coefficient (Pmpp)

-0.35

Temp Coefficient (Voc)

-0.28

Fire Classification (Type)

Type 1

Datasheet
