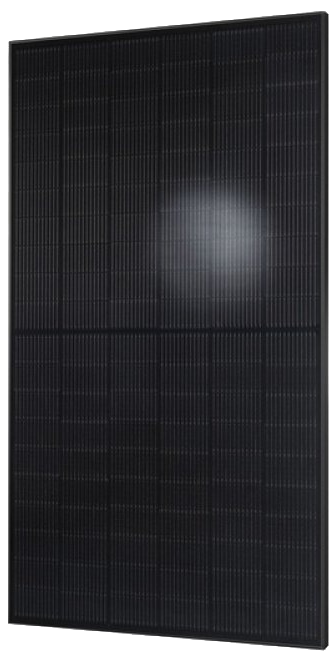

Qcells 435W 108 Half-Cell 1000V N-Type BLK/BLK Solar Panel, Q.TRON BLK M-G2+ 435

Technical Specifications

Qcells 435W 108 Half-Cell 1000V N-Type BLK/BLK Solar Panel, Q.TRON BLK M-G2+ 435

General Information

Manufacturer

Qcells

Series

Q.Tron BLK M-G2+

Part #

Q.TRON BLK M-G2+ 435

Catalog #

Q.TRON BLK M-G2+ 435

Dimensions

1722 L x 1134 W x 30 H mm

Weight

46.7 Lbs.

Approvals

UL61730-1 & UL61730-2CE-compliantQuality Controlled PV - TUV RheinlandIEC 61215:2016IEC 61730:2016U.S. Patent No. 9,893,215 (solar cells).

Technical Specifications

Watts PTC

328.8

Watts STC

435 W

Cells

108

Technology

N-type

Open Circuit Voltage (Voc)

39.6

Short Circuit Current (Isc)

13.82

Max Power Voltage (Vmpp)

33.14

Max Power Current (Impp)

13.13

Max Current

20 A

Efficiency

22.3

Max System Voltage

1000 V

Frame Material

Anodized Aluminum

Frame Thickness (mm)

Frame Color

Black

Backsheet Material

Composite Film

Connector

Staubli MC4; IP68

Output Cables

4 mm² Solar cable; (+) ≥ 59.4 in (1510 mm), (-) ≥ 59.4 in (1510 mm)

Series Fuse Rating (Amps)

Temp Coefficient (Pmpp)

-0.29

Temp Coefficient (Voc)

-0.24

Fire Classification (Type)

Type 2

Datasheet
