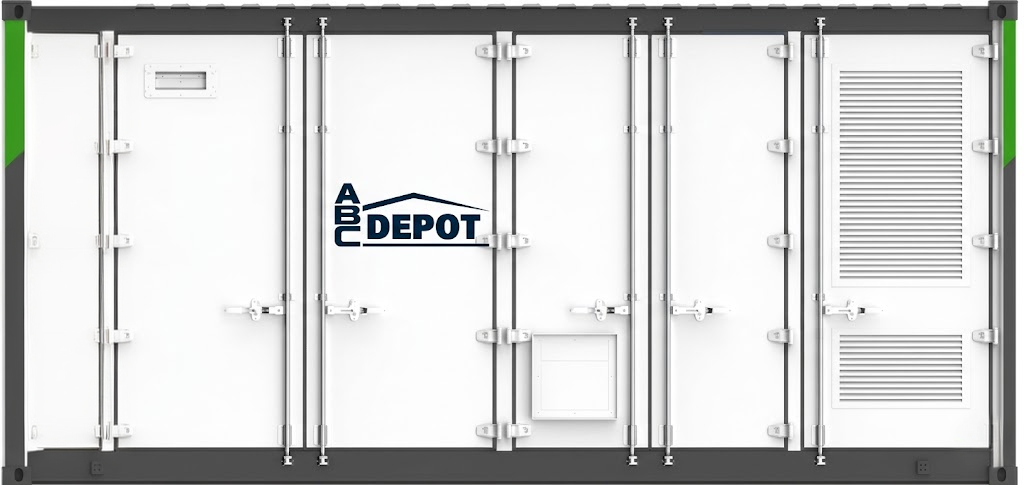

CONTAINER A2000-OMNI

Technical Specifications

CONTAINER A2000-OMNI

General Data

Cooling System

Air Cooling

Cooling system consumption (kW, Cooling/Heating)

Aux. Power Consumption (kW, continuous/peak, incl. HVAC)

Anti-corrosion

C3H (C5 Optional)

Certiﬁcation

UN38.3/UN 3480/IEC62619/IEC62040-1/CE/UKCA (EMC/RED)/VDE2510-50/UL1973/UL9540A/CE LVD/IEC 62477/CE EMC/IEC 61000/EN 50549-1:2019/G99/AS4777

Dimension (W*D*H mm,w/o inverter)

6058*2438*2896

Weight (tons)

Working Temperature Range (℃)

-20~50*

Protection Class

IP55

Altitude (m)

≤4000

Humidity

5%~95%

Fire extinguishing

Perﬂuoro

Battery Data

System Capacity (kWh)

2069.76

Depth of Discharge

98% (single string)

Life Cycle

＞7000

DC Voltage Range (Vdc)

638~781 (single string)

PCS DC/AC Data On-grid Mode

PCS number

Rated AC Power (kW)

500

Rated AC Output Voltage (Vac)

400±15%

Rated AC Output Frequency (Hz)

60±2.5

Max AC Current (A)

0~720

Overload Capacity

125%~150%@200ms

AC PF

0.8~1 leading or lagging

CEC Efficiency

97%

Isolation Type

Non isolated type

Operation Mode

Communication Type

RS485\CAN\Ethernet

Operation Logic

Peak Shaving/Energy Shifting/Self-Consumption

Datasheet
